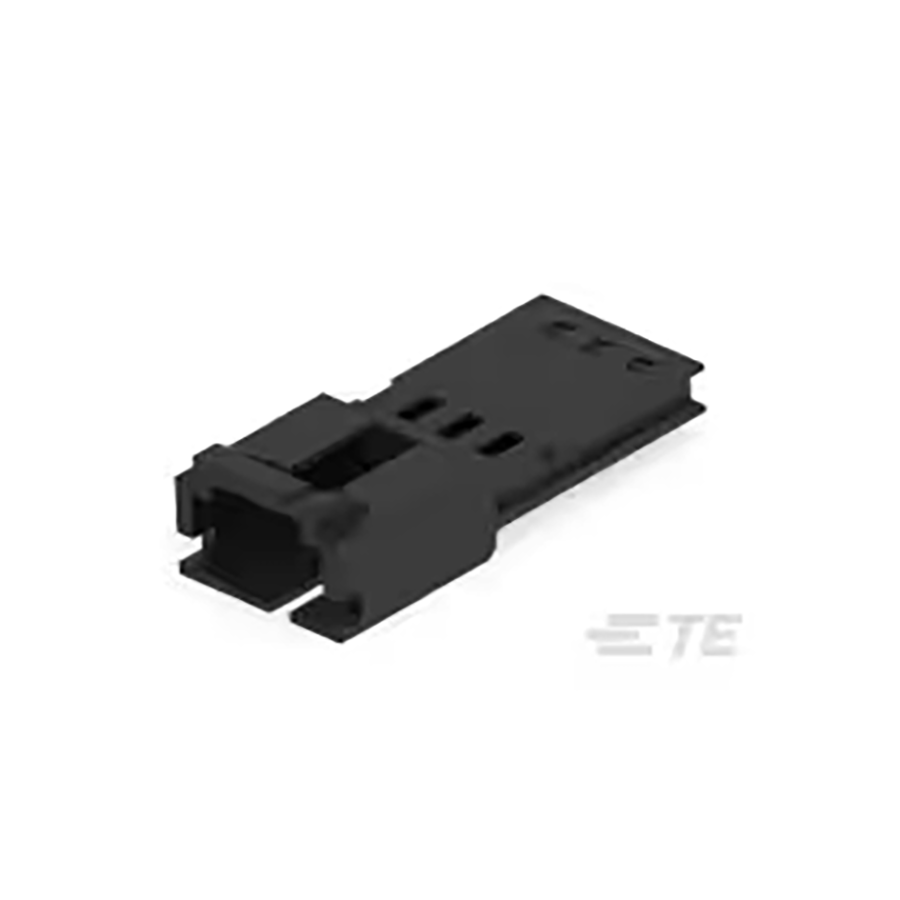

103653-2
Manufacturer:
TE Connectivity
Mfr.Part #:
103653-2
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging, PCB Pin, Plug Number of Positions:3 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 9.906 mm |
| Width | 6.6 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Height | 6.604 mm |
| Packaging | Bulk |
| Depth | 24.13 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Female |
| Number of Contacts | 3 |
| ELV | Compliant |
| Body Material | Thermoplastic |
| Connector Type | Pin, Plug |
| Wire/Cable Gauge | 30 AWG |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Contact Current Rating | 3 A |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 22 AWG |
| Housing Color | Black |
| Mating Post Length | |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Termination Post Length |
Stock: 158
Distributors
pcbx
pcbxUnit Price$0.44390
Ext.Price$0.44390
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.44390 | $0.44390 |
| 10 | $0.34829 | $3.48290 |
| 25 | $0.31463 | $7.86575 |
| 50 | $0.28423 | $14.21150 |
| 100 | $0.25676 | $25.67600 |
| 300 | $0.24515 | $73.54500 |
| 500 | $0.23406 | $117.03000 |
| 1000 | $0.22048 | $220.48000 |
